| الاسم التجاري: | HX |
| Model Number: | دبليو جي اكس-زد دي 1 |
| السعر: | negotiable |
| تفاصيل التعبئة: | تصدير الكرتون |

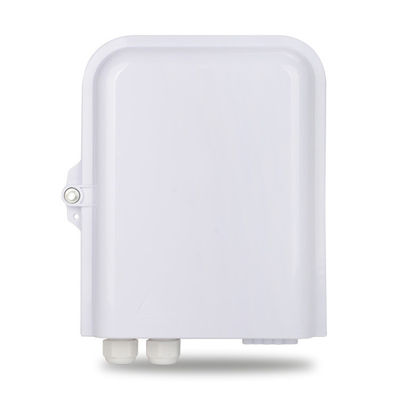

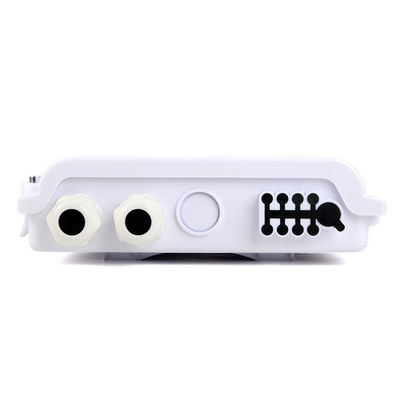

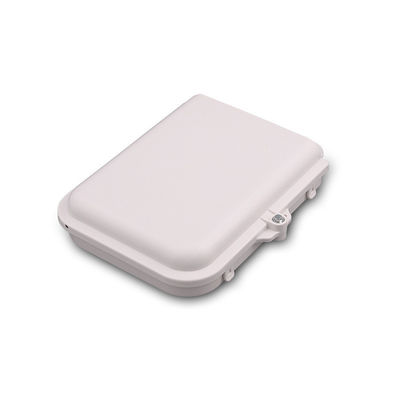

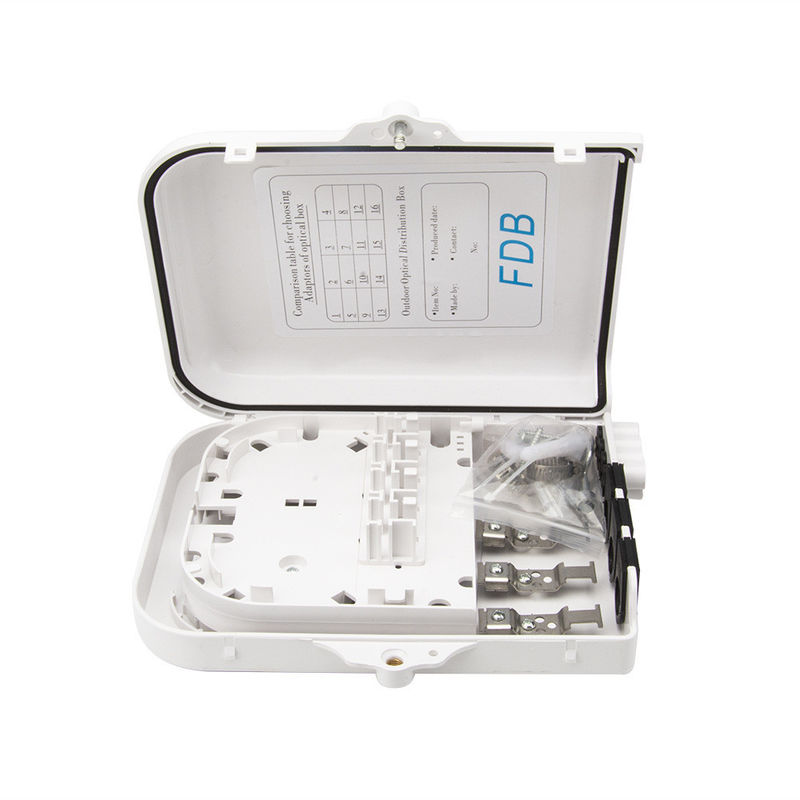

FTTX 8 Core Fiber Optic Distribution Box With 1 8 PLC Splitter For Black/White/OEM
|
Product Name
|
8 Core box distribution
|
|
|

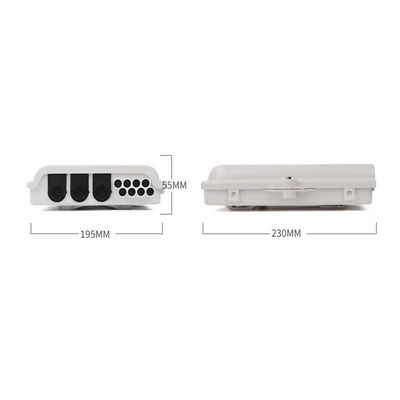

Size
|
230*195*55 mm
|
|
|
Weight
|
0.6kg
|
|
|
Installation (Wall-mounted/Pole-mounting)
|
Wall-mounted/Pole-mounting
|
|
|
Other Accessories
|
Wall mounting kits,Screws,Cable tie,Heat shrink protective sleeves,Key
|
|
|
Environmental requirement
|
|
|
|
Working temperature
|
-40℃~+85℃
|
|
|
Relative humidity
|
≤85%(+30℃)
|
|
|
Atmospheric pressure
|
70KPa~106Kpa
|
|
|
Main technical datasheet
|
|
|
|
Insertion loss
|
≤0.2dB
|
|
|
UPC return loss
|
≥50dB
|
|
|
APC return loss
|
≥60dB
|
|
|
Life of insertion and extraction
|
>1000 times
|
|
|
Thunder-proof technical datasheet
|
|
|
|
The grounding device is isolated with the cabinet, isolation resistance is less than 2MΩ/500V(DC); IR≥2MΩ/500V
|
|
|
|
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover;U≥3000V
|
|
|
|
|
