| الاسم التجاري: | HXCOWO |
| Model Number: | اتش اكس-SW2 |
| الـ MOQ: | 50 متر |
| السعر: | negotiable |
| تفاصيل التعبئة: | عمود خشبي + صندوق كرتون للتصدير |

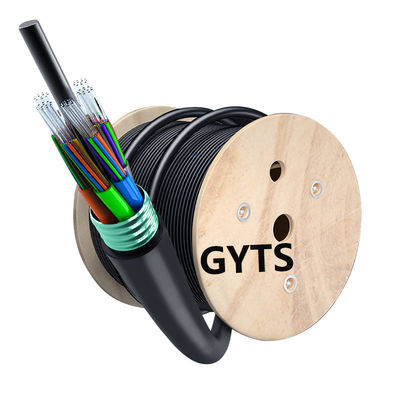

GYTS 24 48Cores Outdoor SM Direct Buried Armored Fiber Optic Cable for Stable Network
|
TECHNICAL PARAMETERS
|
|
|
|
|||
|
Core Number
|
Structure
|
Outer Diameter (mm)
|
Weight (kg/km)
|
|||
|
2-30
|
1+5
|
9.2
|
88
|
|||
|
32-36
|
1+6
|
9.6
|
104
|
|||
|
38-60
|
1+5
|
9.9
|
100
|
|||
|
62-72
|
1+6
|
10.6
|
127
|
|||
|
74-84
|
1+7
|
11.5
|
140
|
|||
|
86-96
|
1+8
|
12.2
|
153
|
|||
|
98-108
|
1+9
|
12.9
|
169
|
|||
|
110-120
|
1+10
|
13.6
|
185
|
|||
|
122-132
|
1+11
|
14.2
|
199
|
|||
|
134-144
|
1+12
|
15.0
|
218
|
|||
|
146-216
|
1+6+12
|
14.9
|
230
|
|||
|
218-288
|
1+9+15
|
16.9
|
289
|
|||
|
Tensile Force (N)
|
|
Flattening Force (N)
|
|
Bending Radius (mm)
|
|
||||
|
Long term
|
Short term
|
Long term
|
Short term
|
Long term
|
Short term
|
||||
|
600
|
1500
|
300
|
1000
|
10D
|
20D
|
||||
|
Notice
|
D refers to the diameter of the optical fiber cable
|
|
|
|
|
||||
|
|
Corresponding technical parameters can be adjusted according to customer needs
|
|
|
|
|
||||
|
|
Water blocking methods can be adjusted according to customer needs
|
|
|
|
|
||||
|
|
Specific designs of fiber optic cables such as flame-retardant, rodent-proof and ant-proof can be carried out according to customer needs
|
|
|
|
|
||||
|
|
